Key Features
- Lithium-iron phosphate battery
- Energy: 5.32kWh
- Capacity: 104Ah
- Operating voltage: 43.2–57.6V
- Dimensions: 620(H) x 440(W) x 135(D) mm
- Weight: 46kg
- Cycle life: 6000 charges
- Non-toxic, non-polluting whole module
- Charges in temperatures as low as -10°C
Guarantee
What's Included
- Sunsynk W Series 5.32kWh, Battery Storage Unit - SUNSYNK-W5.3

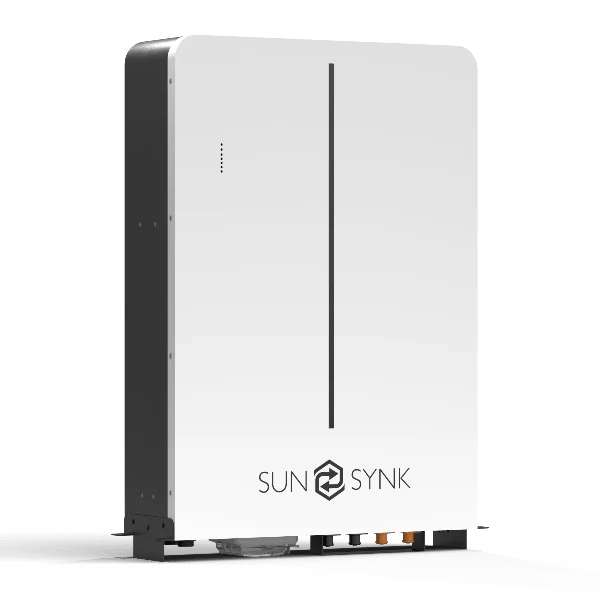

Sunsynk W Series 5.32kWh, Battery Storage Unit - SUNSYNK-W5.3 Overview
The Sunsynk W Series 5.32kWh, Battery Storage Unit - SUNSYNK-W5.3 is designed for scenarios where you need high power with a long cycle life (≥6000), and require limited storage space. This battery includes lithium-ion rechargeable batteries with a 5.32kWh capacity and allows you to maximise the renewable energy generated through your PV system. If you needed more power, you can use up to 32 of these battery storage units for a maximum 170kWh capacity.
Built-In Battery Management System (BMS)
The Sunsynk W Series 5.32kWh features a BMS, which can monitor the battery's information, such as voltage, current, and temperature.
Non-Toxic Module
This battery storage unit has a non-toxic, non-polluting, and environmentally-friendly module, and the cathode material is designed with LiFePO4 for enhanced safety and a long life cycle.
It also has a built-in 125A miniature circuit breaker (MCB) for further safety and protection during use.
Charges in Low Temperatures
This durable battery is made to operate in extreme weather conditions and charges devices at temperatures as low as -10°C and discharges at temperatures as low at -20°C. For the best results, store this battery pack is temperatures between 15°C and 35°C.
Additional Information
- Mounting: Wall or floor
- Enclosure's IP rating: IP65
- Built-in battery management system
Certifications
- IEC62619, CE, UK, CEC, UN38.3
