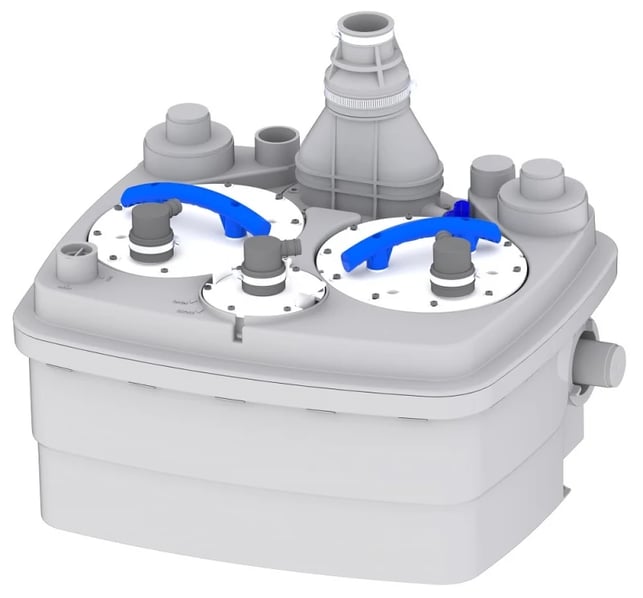

Saniflo Sanicubic 2 Classic Macerating Pump
Includes two hard-wired alarms and two motors for a high performance, failsafe system ideal for commercial applications.
Possible connections: toilet, wall-hung toilet, kitchen sink, basin, shower, bathtub, washing machine (indirect connection), dishwasher, bidet. Discharges - 11m Vertical / 110m Horizontal.
- Suitable for busy commercial applications where business continuity is important
- High performance macerator with twin motors to provide a failsafe system, one motor takes over if the other fails
- In the event of inflow overload, both motors are activated
- Features a hard-wired alarm on the external control box and an additional hard-wired audio visual alarm with a 5m cable for flexible installation away from the control box
- The tank is fitted with two dip tubes, the long pickup tube used during normal operation triggers the pumps when the waste water level reaches the upper point, whilst the short pickup tube used during inflow overload operation closes a contact and triggers the auxiliary pumping system when the waste water level reaches the upper limit - seting off an audible and visual alarm
- IP68 rating for protection against water ingress
- 35° working temperature, can handle up to 70° for short periods
- Centre height of inlets is 140mm
- Can be connected to a Business Management System
- 50mm discharge pipework
- 1500 Watts x 2 motor power
- 12m³/h flow rate
- 220-240 V/50 Hz voltages
- 45L tank volume
Note: Isolation valves must be fitted to the inlet pipework and discharge pipework to isolate the unit in case of the need for service.
Picking the most suitable kind of Pump is a major decision. When you decide that
Macerators provide the right answer then the Saniflo 6103 is unquestionably worth putting on your shortlist.
