Key Features

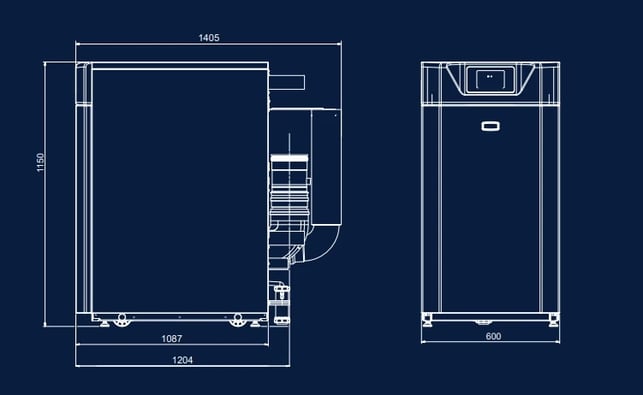

- Dimensions: 1150(H) x 600(W) x 1087(D) mm
- Clearances: 500(top) x 150(sides) x 600(front) x 700(rear) mm
- Output: 200kW
- Power consumption: 220W
- Compact size: Small footprint and fits through standard doorways
- Fuel: Natural gas
- Floor standing
- Full colour touchscreen control
- Warranty: 5-year heat exchanger warranty (subject to terms and conditions) and a 2-year parts and labour warranty as standard

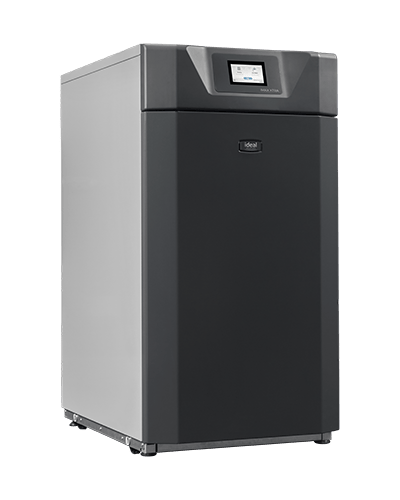

Ideal Imax Xtra 2 E200 Gas Condensing Boiler, 200kW - 225467 Overview
The Ideal Imax Xtra 2 E200 boiler is floor standing and uses natural gas to power the central heating system in homes.
You can use this floor-standing boiler on its own or in a cascade of up to 4 boilers.
Specifications
The Ideal Imax Xtra 2 E200 gas condensing boiler has a 200kW output and a 220W power consumption. It has a part load efficiency of up to 108.2%, a R2" flow and return size and a high 5:1 turndown.
Compact Design
Measuring 1150mm tall, 600mm wide and 1087mm deep, this commercial boiler has a small footprint to fit through standard doorways. Best of all, this boiler is fitted with wheels for convenient transportation and easy installation.
Display
This Ideal boiler features a full colour touchscreen control, allowing you to see all the current functions settings, eliminating any guesswork and making it user-friendly.
Additional Features
- Fitted with wheels for easy installation
- Cascade header kits and controls
- Robust cast aluminium silicon alloy heat exchanger
- Up to 108.2% part load efficiency
- High 5:1 turndown
- Flow and return size: R2”
