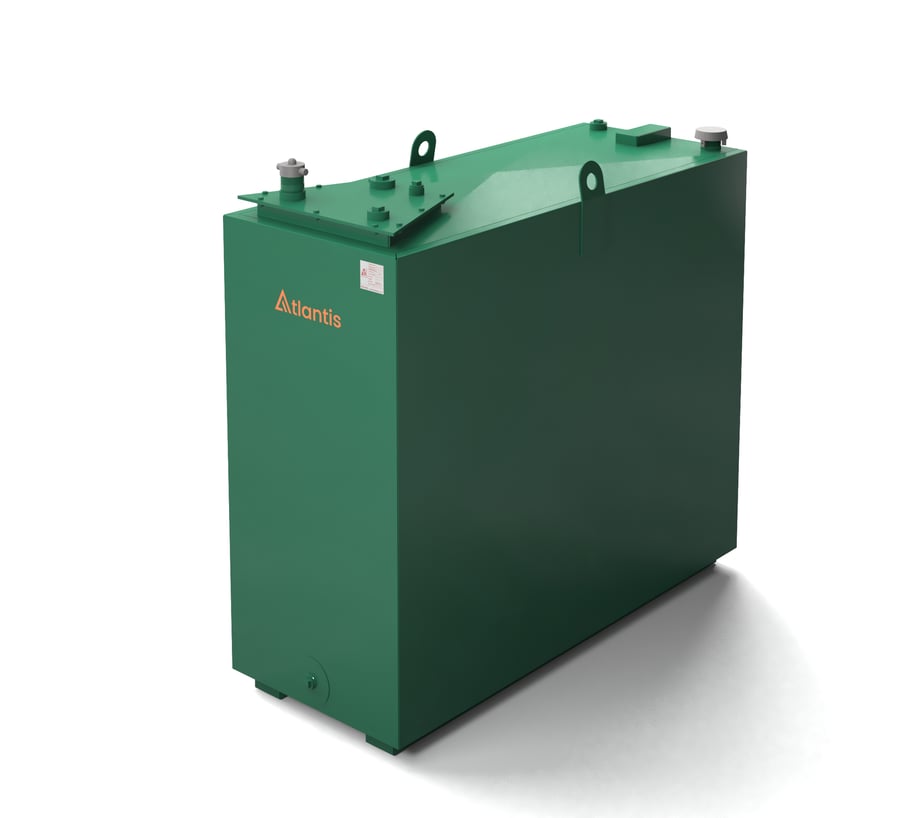

The Atlantis 900-Litre Steel Bunded Imperium® Heating Oil Tank is a British-made storage solution designed for heating oil, kerosene, diesel, hydrotreated vegetable oil (HVO), and other approved fuels. Suitable for both domestic and light commercial use, it combines a robust steel build with modern manufacturing methods, delivering long-term reliability where safety, compliance, and ease of maintenance are essential.
Built with Imperium® Technology
This model is manufactured using Atlantis Imperium® technology, a modular production method that reduces welds, improves tolerances, and enhances corrosion resistance. The result is a stronger, longer-lasting tank that’s easier to inspect, service, and maintain, while keeping manufacturing consistent and cost-effective.
Strong Steel Construction
- Material: High-grade S275 JR structural steel
- Compliance: Built to BS EN 10025-2:2004 and BS 799 Pt5 standards
- Finish: Two-coat anti-rust protective system in Holly Bush Green
- Touch-up paint included for installation scratches
This heavy-duty build means the tank is suitable for daily use in homes, farms, small businesses, and light industrial sites.
Bunded for Environmental Protection
This is a pre-bunded tank, with a secondary containment layer capable of holding 110% of the inner tank’s volume. It protects against leaks or spills and meets UK environmental regulations, including the Oil Storage Regulations (PPG2). A 1.5” bund socket is included for fitting a bund alarm probe, alongside bund vents for pressure control.
Practical Fittings and Access
A removable fittings plate makes servicing simple and future-proofs the tank for upgrades. Standard fittings include:
- 2” fill point with aluminium drip cap & chain
- Spare 2” top socket for accessories
- 1.5” port for a contents gauge
- 1” socket with internal suction pipe
- 1” bottom outlet (front face)
- 2” tank-to-bund vent and 2” bund vent
This modular approach saves installers time and makes maintenance easier across the tank’s lifespan.
Useful Design Features
- Pitched roof prevents water pooling and encourages run-off
- Lifting eyes make handling and positioning easier
- Full-length base bearers provide a stable load distribution on a concrete base
- Optional lockable top box available for added security
Dimensions, Capacity, and Weight
- Nominal capacity: 898 litres
- Brimful capacity: 945 litres
- Usable capacity (with OPV): 869 litres

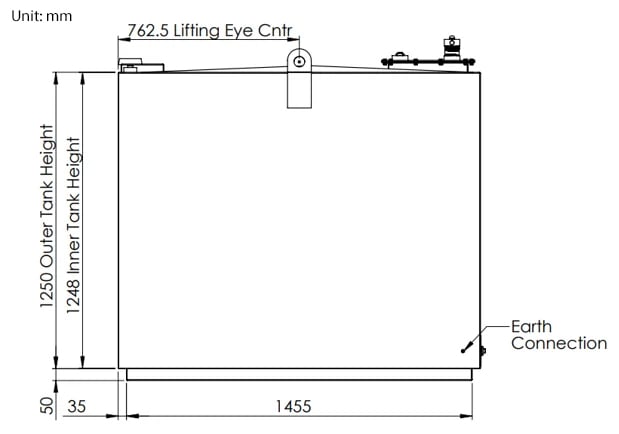

- Outer dimensions: 1525mm (L) × 610mm (W) × 1250mm (H)
- Inner dimensions: 1395mm (L) × 550mm (W) × 1248mm (H)
- Dry weight: 222kg
- Full weight (fuelled): ~996kg
These figures ensure installers and customers know exactly how the tank will fit and perform in real-world settings.
Installation Guidance
- Base requirement: Solid, level concrete extending at least 300mm beyond the tank footprint. For this model: 2125mm × 1210mm.
- Delivery & siting: Delivered with lifting eyes for secure placement.
- Servicing: Easy via removable fittings plate.
Warranty and Assurance
Every Atlantis Imperium® tank is backed by a 10-year manufacturer’s warranty, provided it is installed to regulations and maintained according to the warranty manual.
Who It’s For
This 900-litre model is ideal for:
- Domestic households needing safe, compliant heating oil storage
- Farms, workshops, and light commercial premises storing diesel or HVO
- Environments where environmental protection is a must (thanks to bunded design)
- Installers who need a tank that’s quick to fit, adaptable, and easy to maintain
