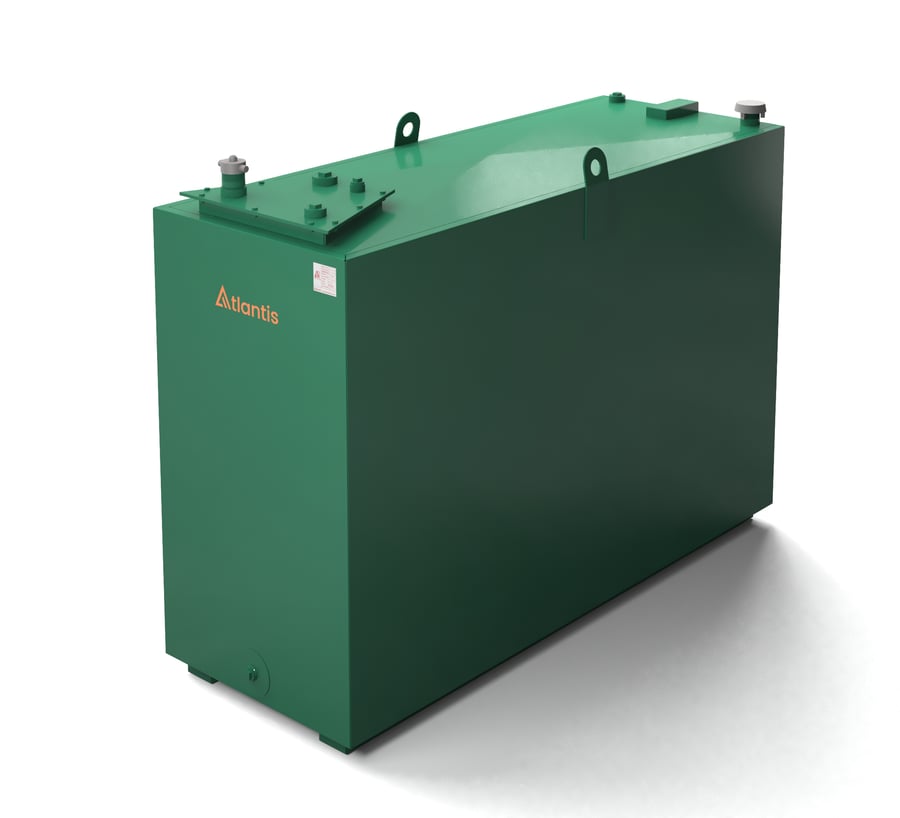

The Atlantis 1350-Litre Steel Bunded Imperium® Heating Oil Tank is designed for safe and dependable storage of heating oil, kerosene, diesel, HVO, waste oils, and more. Suitable for both domestic and light commercial use, it combines durable steel construction with practical features that make installation and maintenance straightforward.
Imperium® Technology – A Smarter Way to Build Tanks
This model is manufactured using Imperium® Technology, Atlantis’s modular production method that reduces welds, improves tolerances, and enhances corrosion resistance. The result is a stronger, more consistent tank that’s easier to inspect, service, and maintain. Built from S275 JR structural steel and manufactured to meet strict British Standards, this tank delivers excellent durability and long-term performance.
Bunded for Safety and Compliance
The 1350L tank is pre-bunded, providing a built-in secondary containment system that holds 110% of the inner tank’s capacity. This dual-layer protection minimises the risk of leaks and spills reaching the environment. The bund is vented and includes a socket for fitting a bund alarm probe if required.
Practical Features for Everyday Use
A removable fittings plate houses all the main connections, making checks and upgrades easy. Standard fittings include a 2” fill point with aluminium drip cap, a spare 2” top socket, a 1.5” port for a contents gauge, and a 1” socket with internal suction pipe. A 1” bottom outlet is fitted as standard, along with dedicated vents for both the tank and the bund.
Useful Design Features
- Pitched roof for effective rainwater run-off
- Lifting eyes for safer handling and positioning
- Full-length base bearers for stable mounting on a prepared base
- Optional lockable top box for extra security
- Finished in Holly Bush Green with a two-coat anti-rust system
- Supplied with a tin of touch-up paint for installation marks
Capacity and Dimensions
- Nominal capacity: 1,371litres
- Brimful capacity: 1,443 litres
- Usable capacity (with OPV): 1,327 litres

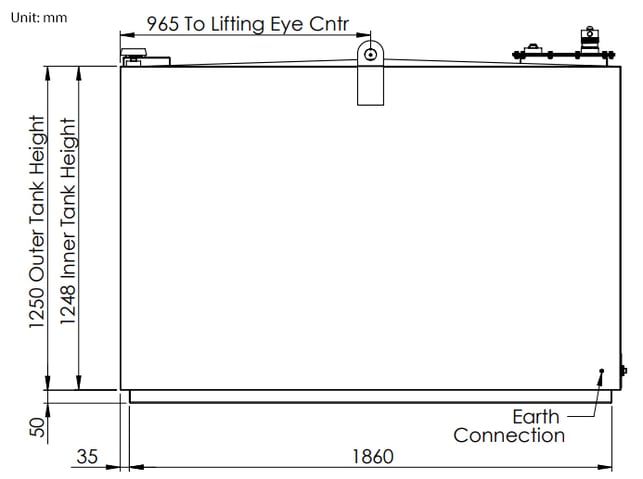

- Outer dimensions: 1930mm (L) × 710mm (W) × 1250mm (H)
- Inner dimensions: 1800mm (L) × 650mm (W) × 1248mm (H)
- Empty weight: 285kg
- Full weight (fuelled): approx. 1,471kg
Installation Guidance
For compliance and stability, the tank must be installed on a solid, level concrete base that extends at least 300mm beyond the tank footprint on all sides. The recommended base size for this model is 2530mm × 1310mm.
Warranty and Reassurance
Every Imperium® tank comes with a 10-year manufacturer’s warranty, provided it is installed and maintained to the correct standards. With high-grade steel, protective coatings, and modular construction, this tank offers long-term reliability and peace of mind.
Who It’s For
The 1350-litre model is ideal for:
- Larger homes with higher heating oil demand
- Farms, workshops, and small commercial premises using diesel or HVO
- Any environment where environmental protection and compliance are essential
- Installers looking for a tank that’s quick to fit, adaptable, and simple to maintain
